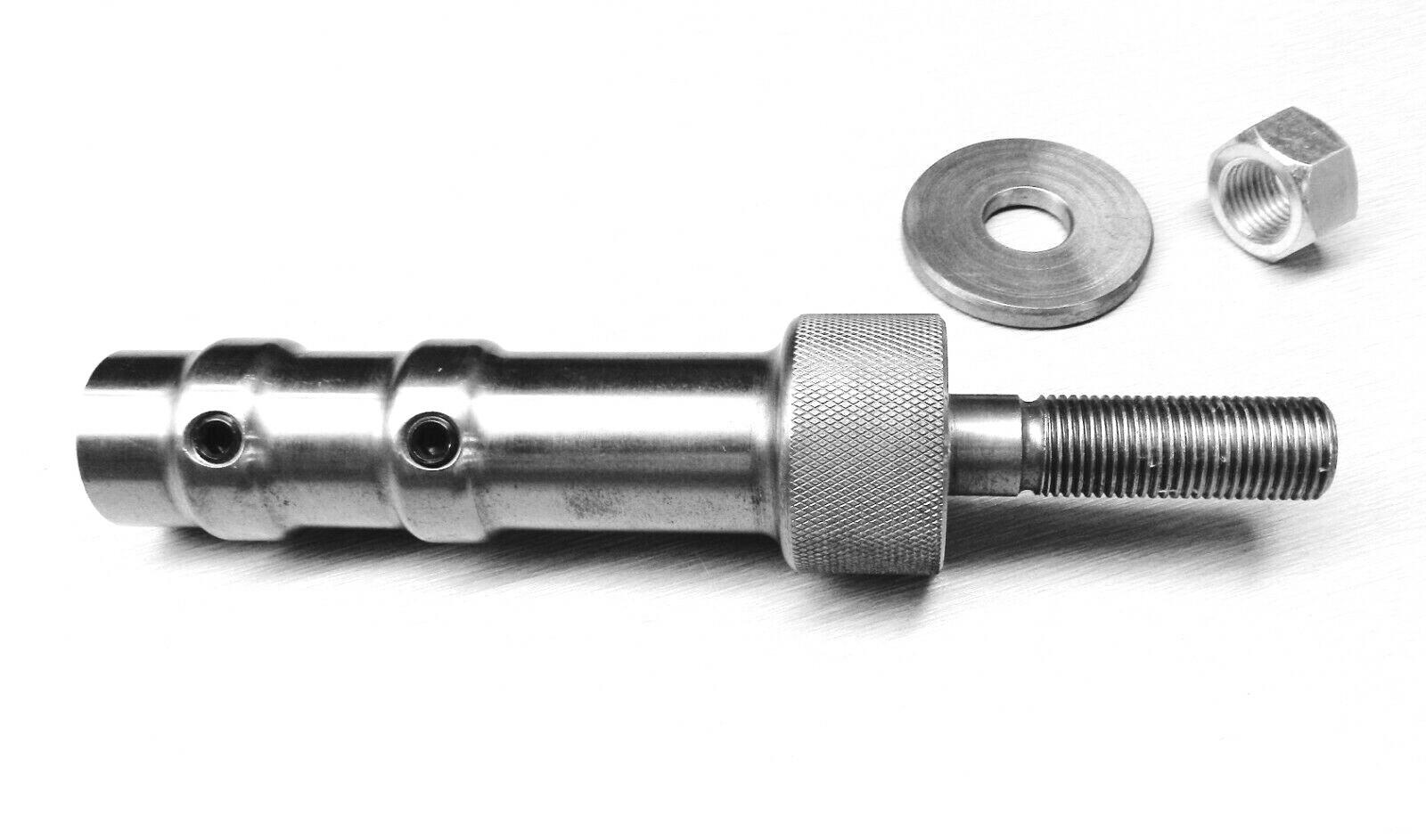

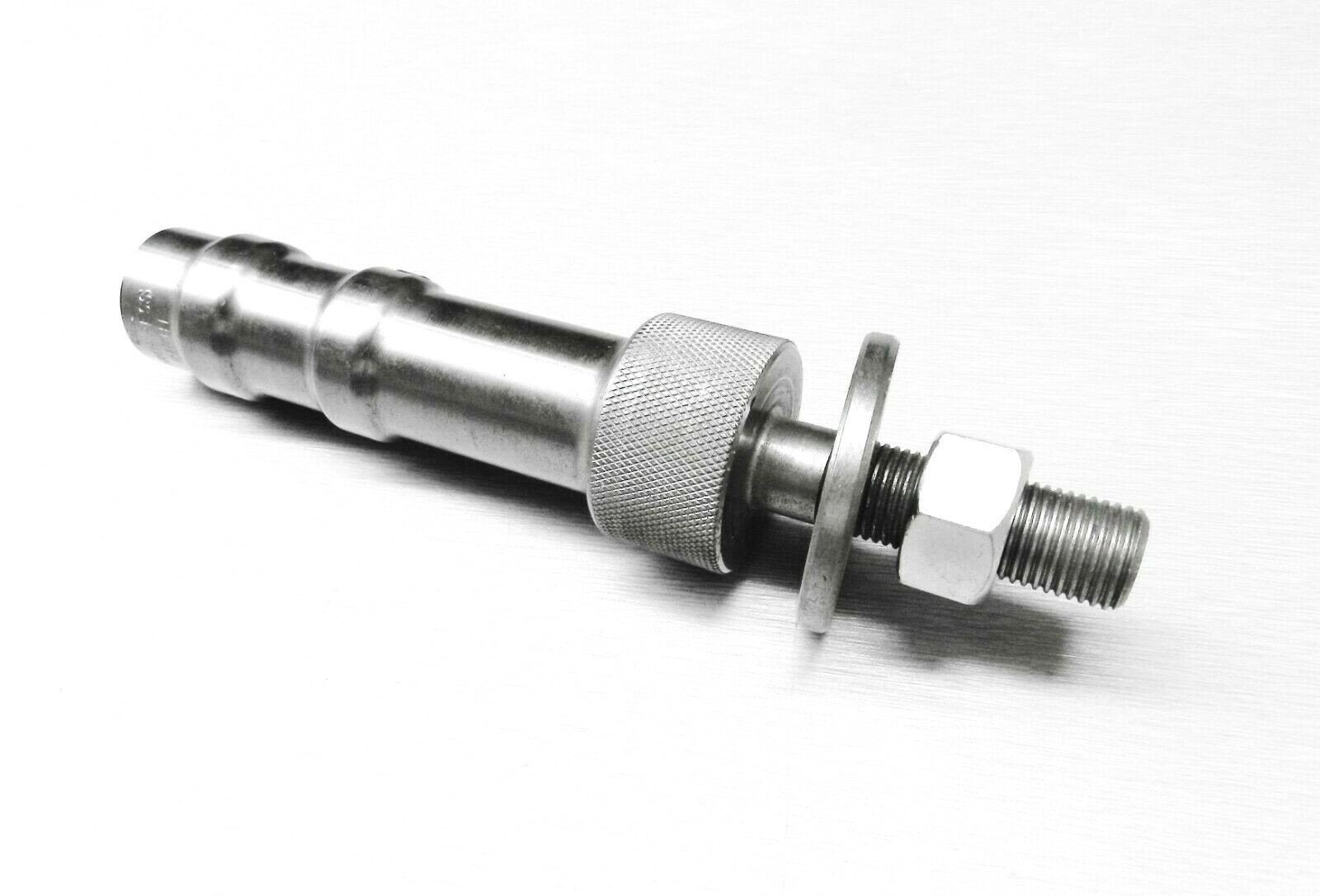

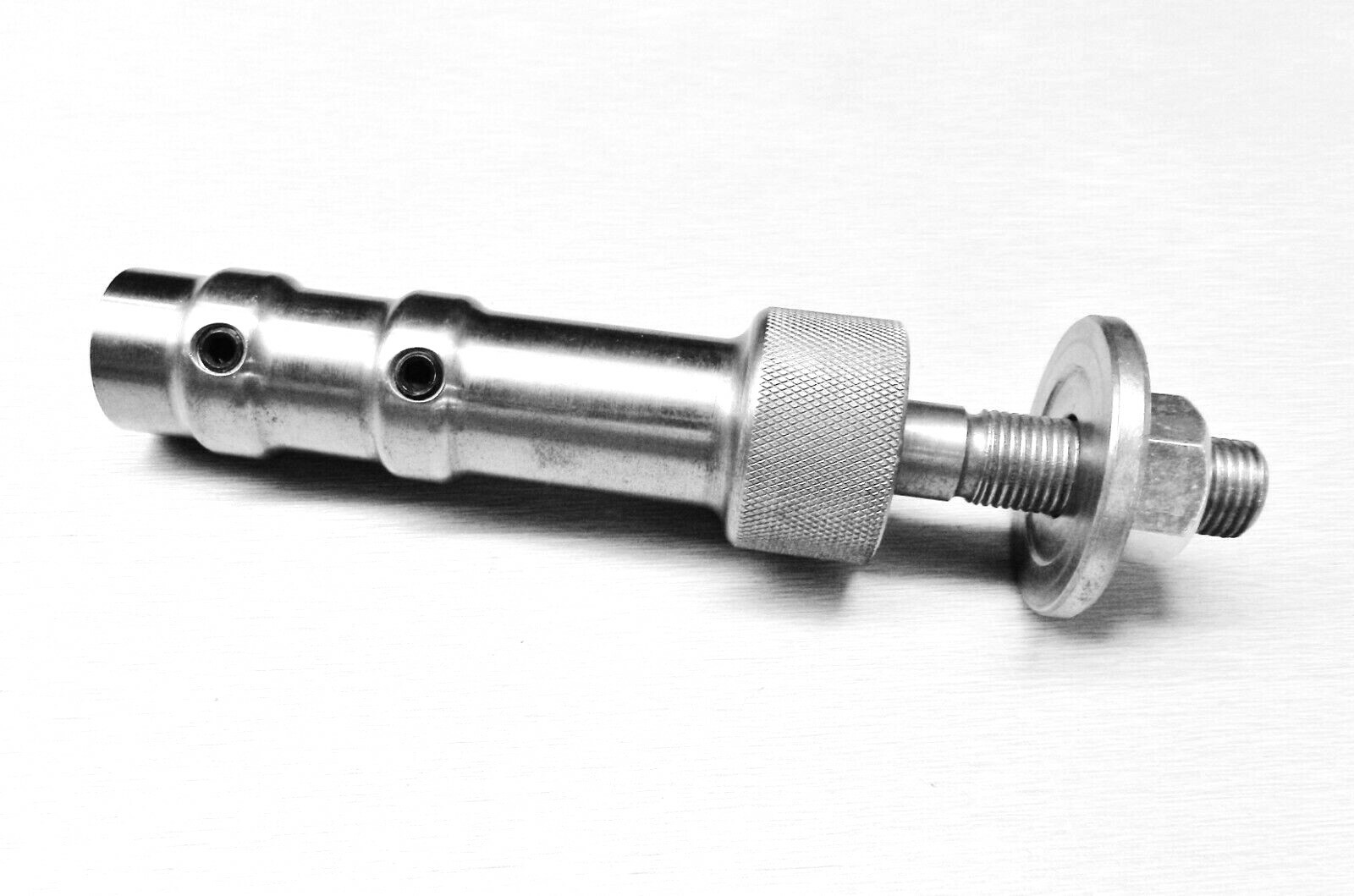

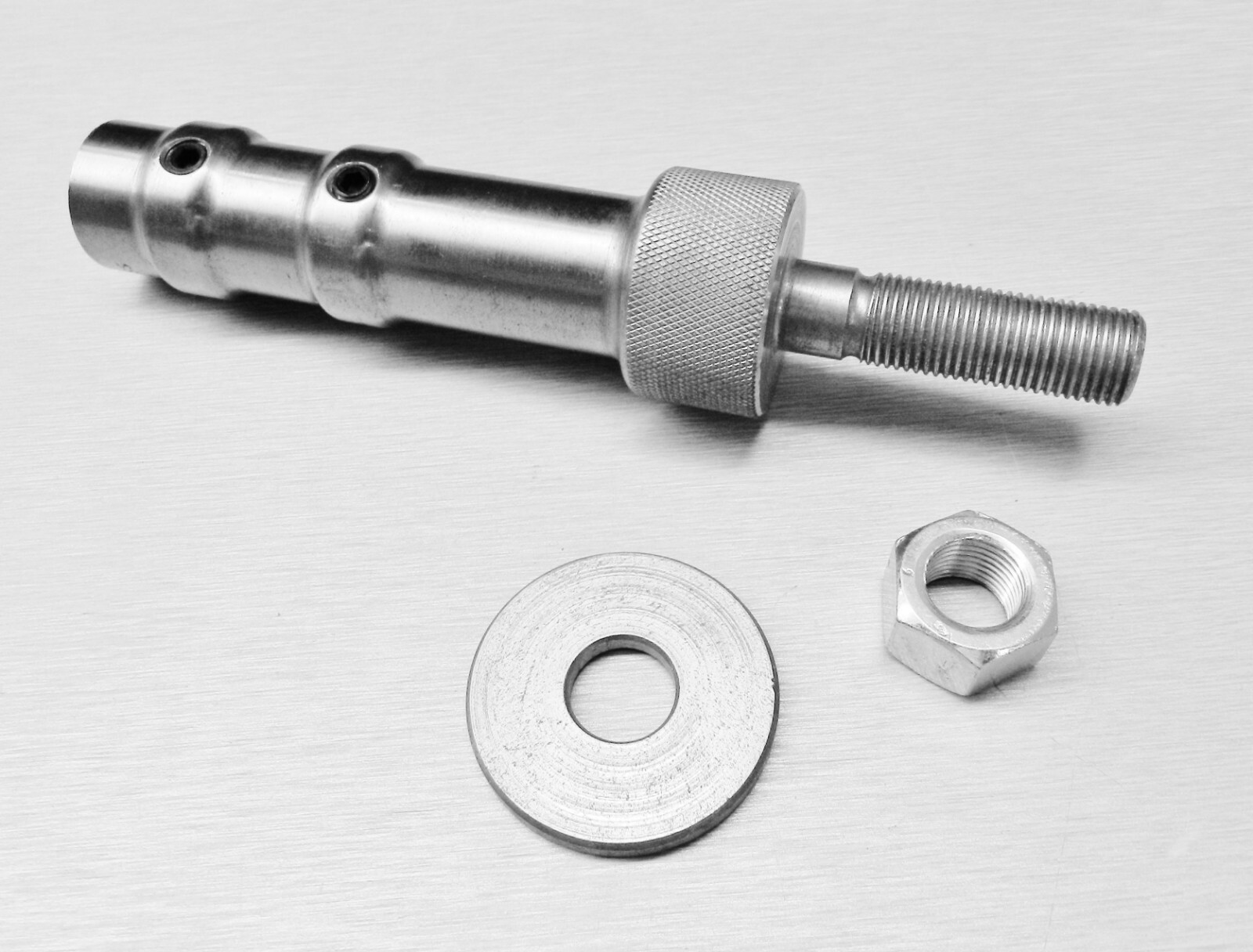

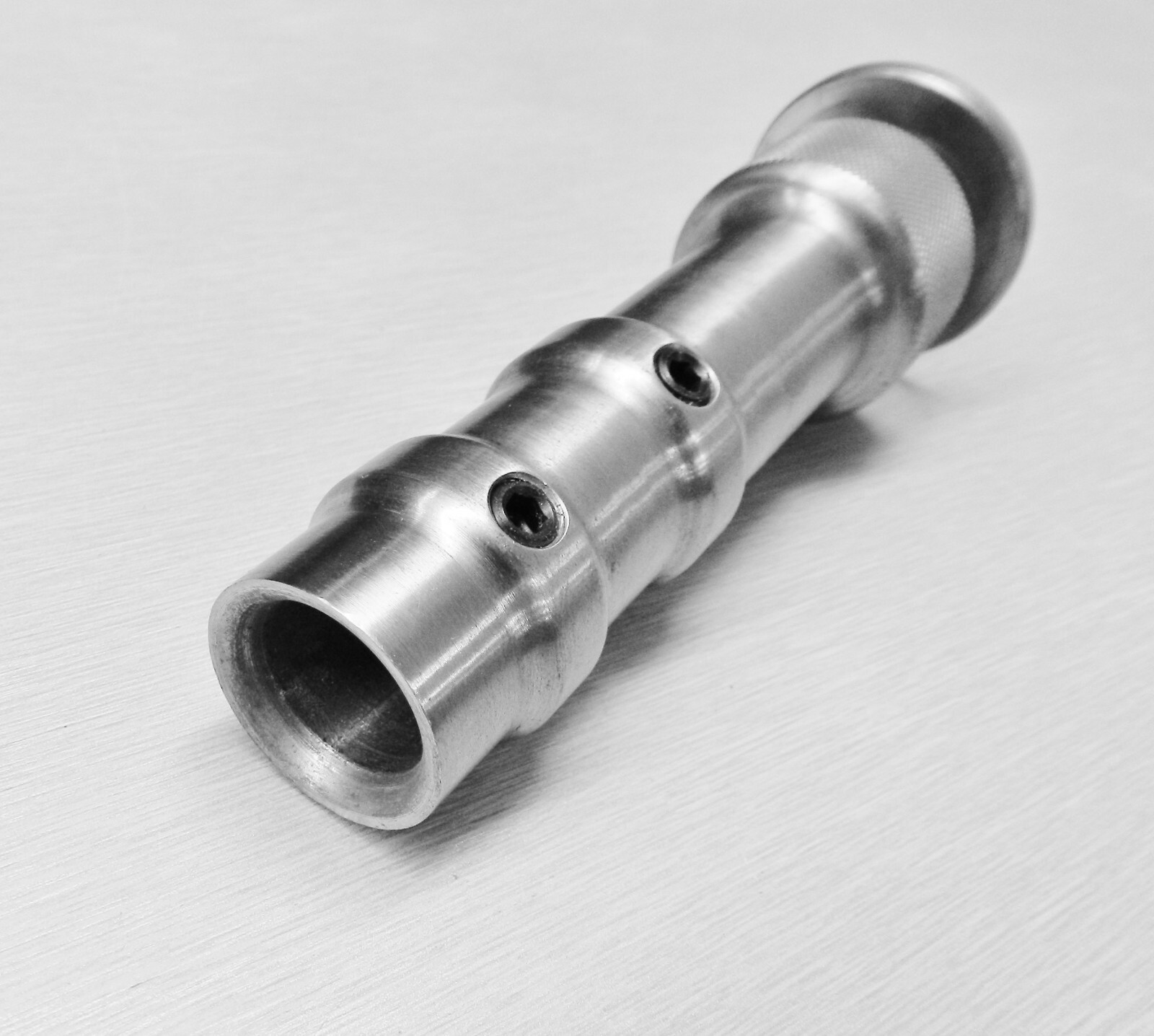

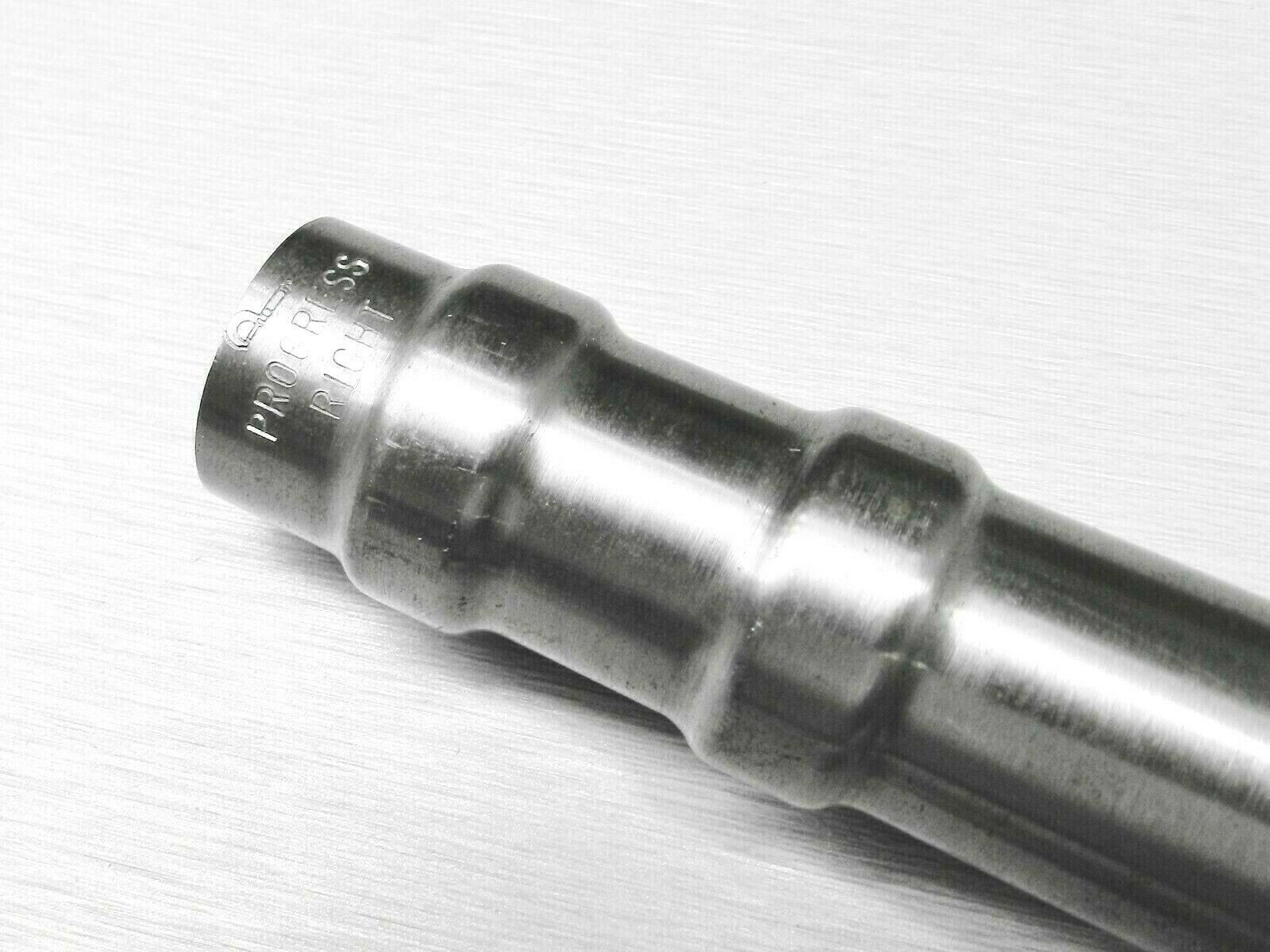

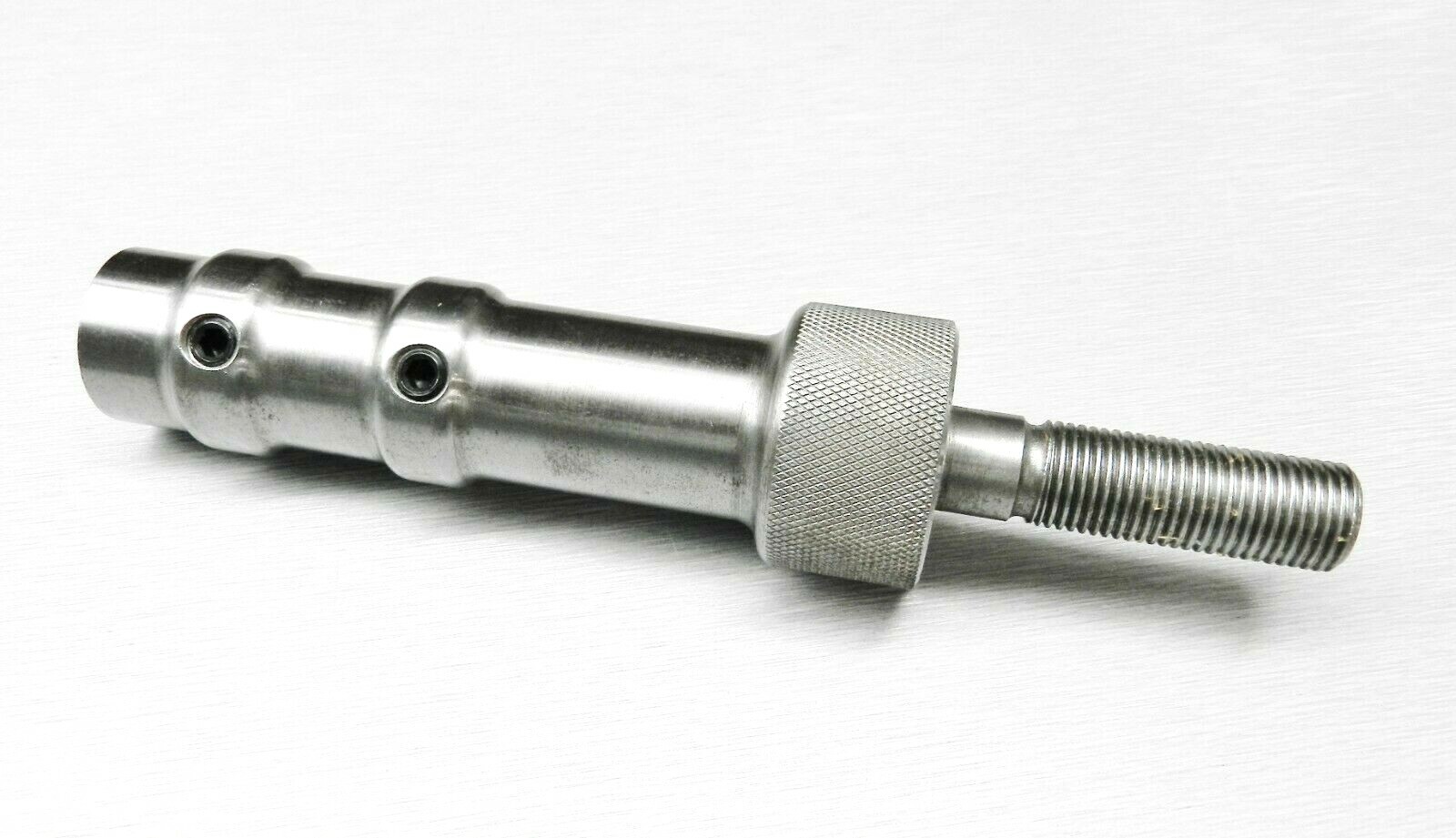

Spindle Straight 1/2″ Arbor Hole with 1/2″ Shaft Right Hand Thread 4-3/4″ L
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Country/Region Of Manufacture | United States |
| Material | Steel |
| Country Of Manufacture | Made in USA |
| Type | Bench Grinder |
| Country//Region Of Manufacture | Made in USA |
| Power Source | MOTOR GRINDER |
| MPN | PC123475 |
| Item Length | 5-3/4 |
| Item Weight | 16oz |
| Brand | Progress |
SPINDLE STRAIGHT SHAFT SHAFT RIGHT HAND THREADWITH 1/2" ARBOR HOLE - 1/2" THREADED SHAFT for Right Hand Holds 1" Wide Wheels 4-3/4" Long A custom made Special Design spindle with excellent finish is made in the U.S.A. manufactured with close tolerances, runs true without any vibration with optimal performance of wheels and accessories being used. Spindle is designed to hold 1" wide wheels. This Arbor - Spindle is used to hold Wheels with 1/2" arbor holes: Abrasives, Drum Sanders, De-Burring, Buffs and Felt Wheels and more. Spindle has a 1/2" arbor hole to work on 1/2" shaft Motors, Grinders or Polishers. The arbor is made to be used on the Right Side of the motor, fastened and held on the motor shaft with 2 Allen Head Set Screws. Note: Always slightly tighten the front most set screw and then the one closest to the motor. Final tightness should be done after both are equally tight. FEATURES: · Precision Quality · Machining is done by CNC Equipment · Made of 1-1/8" Diameter Solid Steel · Set of Allen Screw do not protrude above the main shaft of the spindle. · Right Hand 1/2" x 20 Nut · High Quality Finish SPECIFICATIONS: JETS Product # 1603-123475- Material: Cold Rolled Steel - Overall Length: 4-3/4" - 120mm - Body Diameter: 1-1/8" - 28.5mm (Widest Portion) - Spindle Body Length: 3" - 76mm - Spindle Shaft Length: 1-3/4" - 44.4mm - Arbor Hole: 1/2" (For Motor Shaft Connection) - Spindle Shaft Diameter: 1/2" - 12.7mm - Weight: 14.8oz. - 420gr Spindle is made to be used on a 1/2" shaft diameter and on the Right Hand Side of Motor with forward direction. NOTE: Visit JETSTOOLS ebay Store Listings, where you can see various sizes of Spindles, Arbors, Miniature Mandrels and Holders along with more Jewelers Equipment Tools and Supplies. JETS Inc. B16 818 CKSP M
